LDPOWER 4686-1350KV 4 pole sensorless Inrunner brushless motor for 1:5 RC car LDPOWER 4686-1350KV 4 pole sensorless Inrunner brushless motor for 1:5 RC car LDPOWER 4686-1350KV 4 pole sensorless Inrunner brushless motor for 1:5 RC car LDPOWER 4686-1350KV 4 pole sensorless Inrunner brushless motor for 1:5 RC car LDPOWER 4686-1350KV 4 pole sensorless Inrunner brushless motor for 1:5 RC car

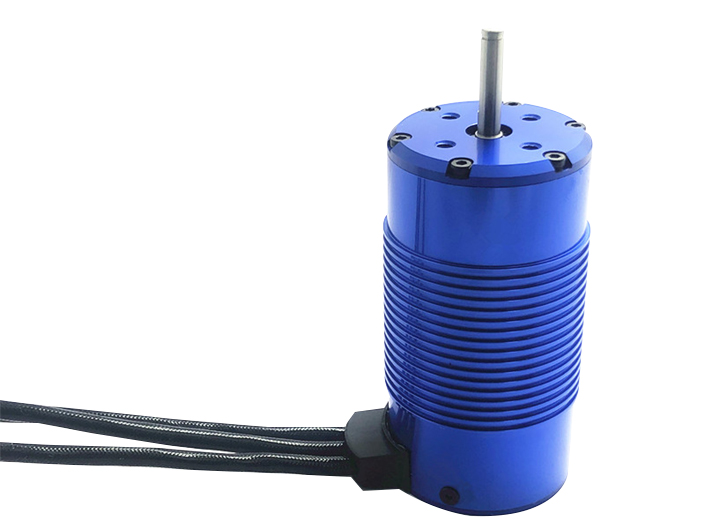

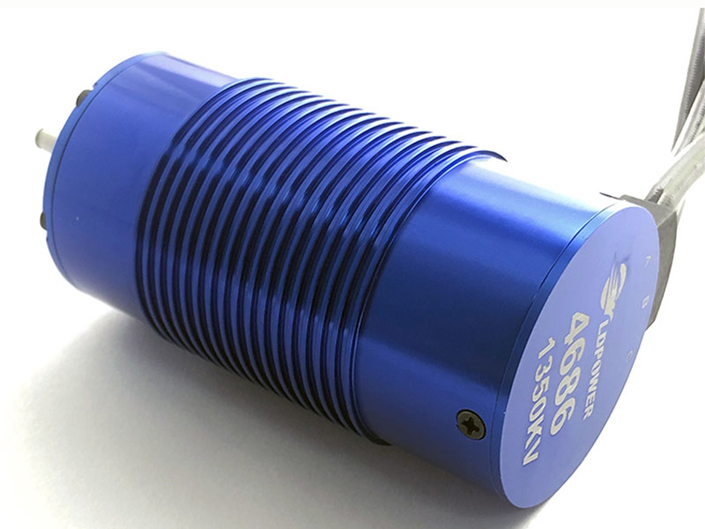

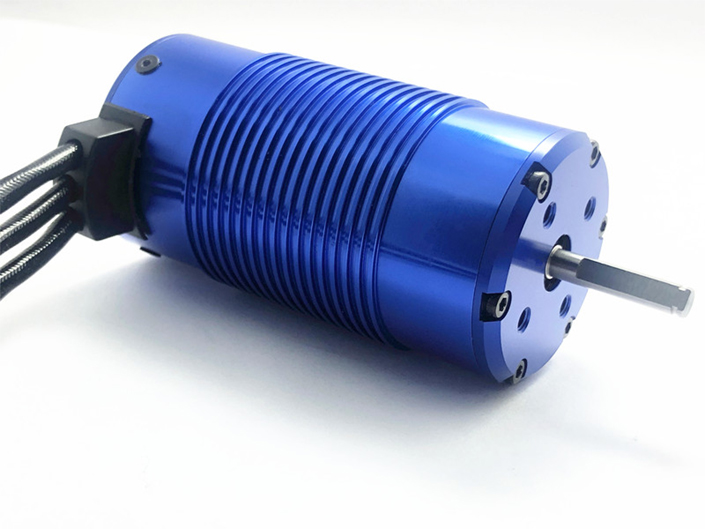

LDPOWER 4686-1350KV 4 pole sensorless Inrunner brushless motor for 1:5 RC car

Related :

Review
DETAILS

基本参数
ProductParameters
Model Name型号 LD4686 MaxAmps(A)最大电流 125A
Motor Dimension(mm)电机尺寸 46*86 Max Volt(V)最大电压  25V
KV（RPM/V） 1350KV MaxPower(W)最大功率  4200W
Shaft Length(mm)轴伸长度 22 Resistance(Ω)内阻 5.9mΩ
Shaft Diameter(mm)轴径 Φ5 No load Current(7.4v)空载电流 3.9
Sensor/Sensorless有感/无感  Sensorless无感  Weight(g)重量 608g
Pole No.极数 4 Applied models应用车型 1:05
